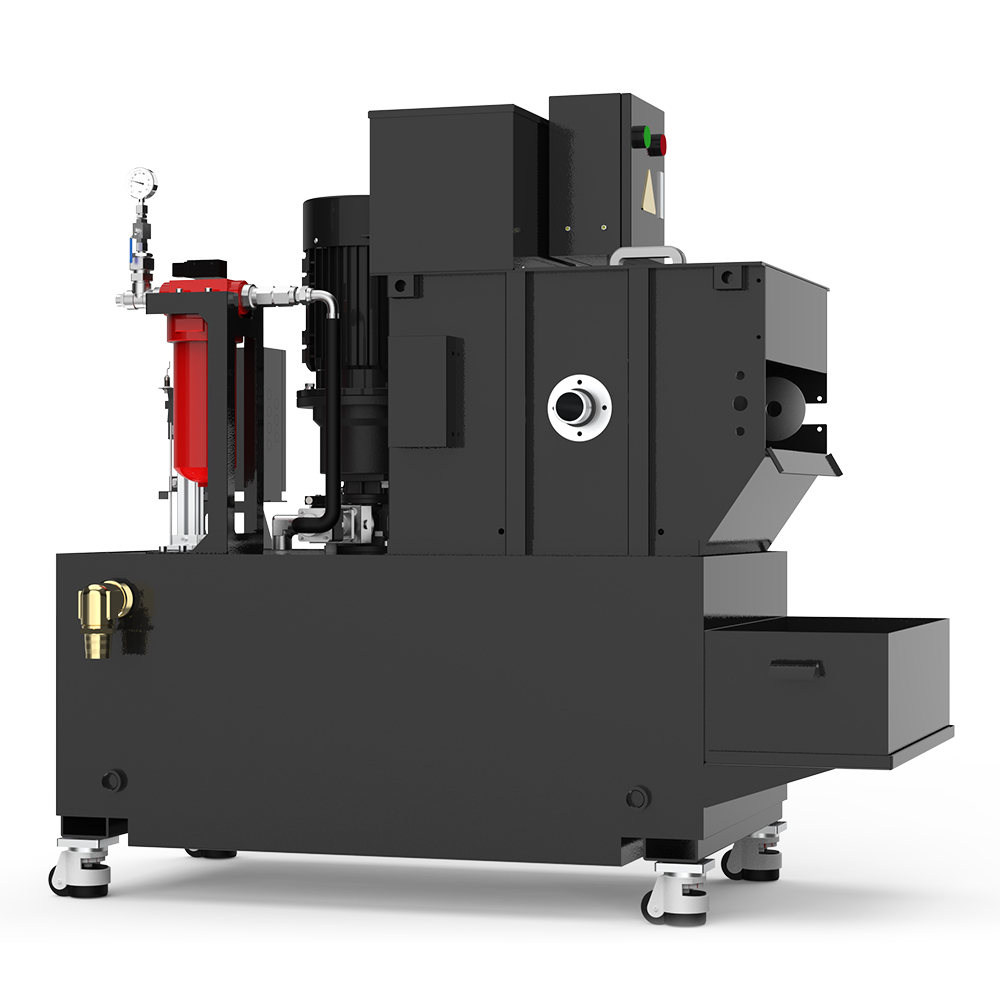

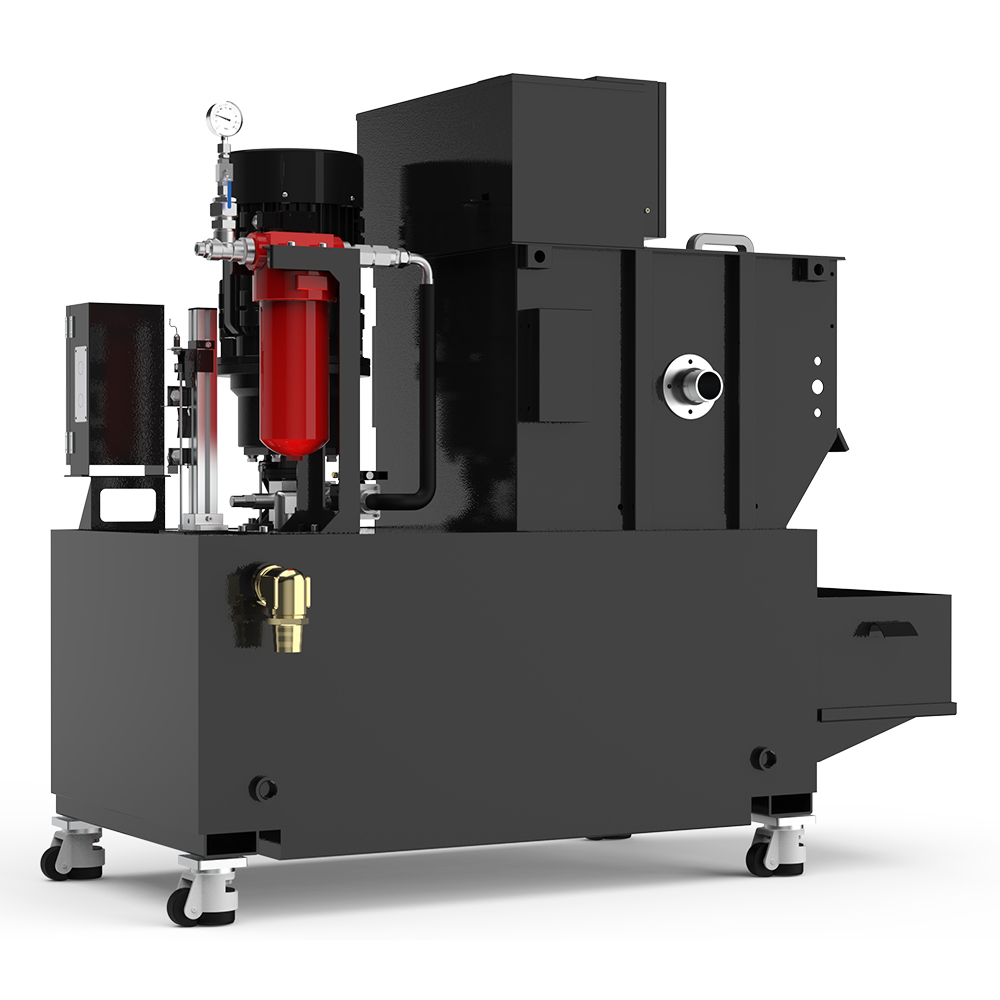

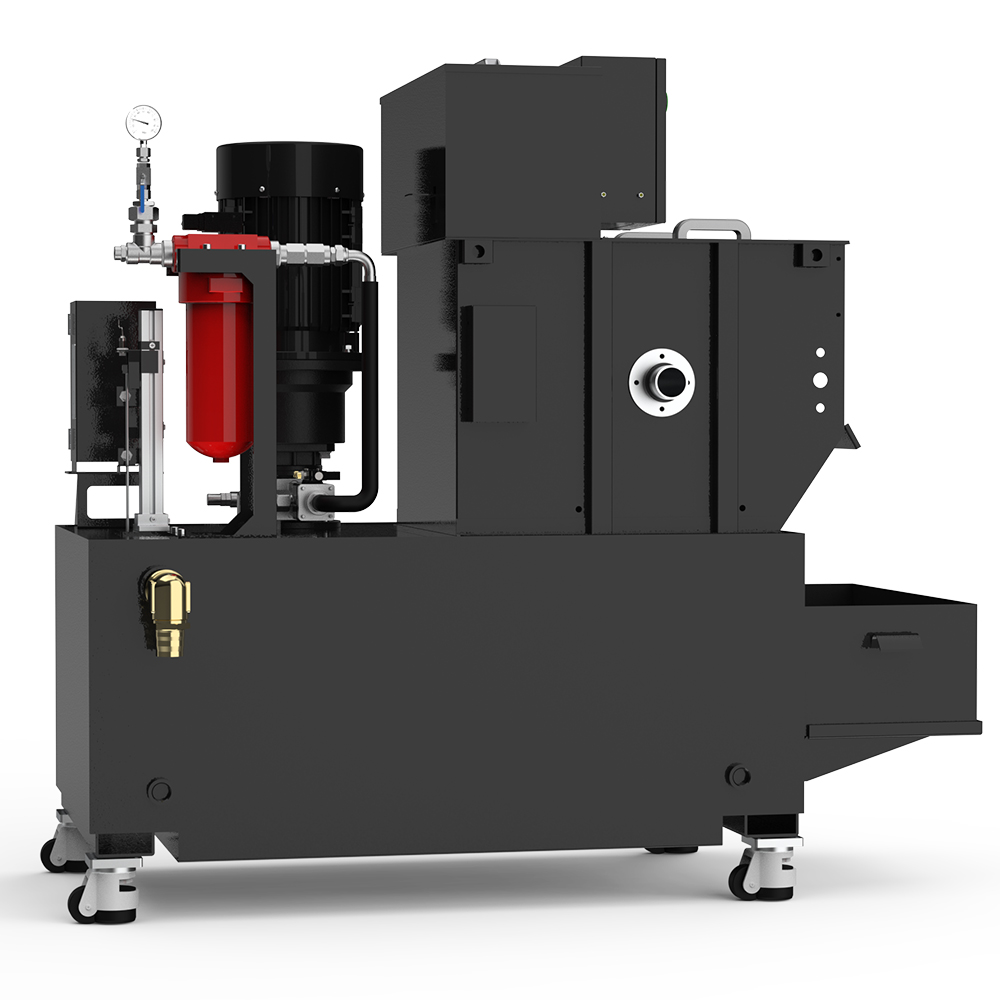

A3SS-XT15 鼓式過濾系統
Hydrostatic Drum Filter System
一、性能、特點及用途--Performance,characteristics and application

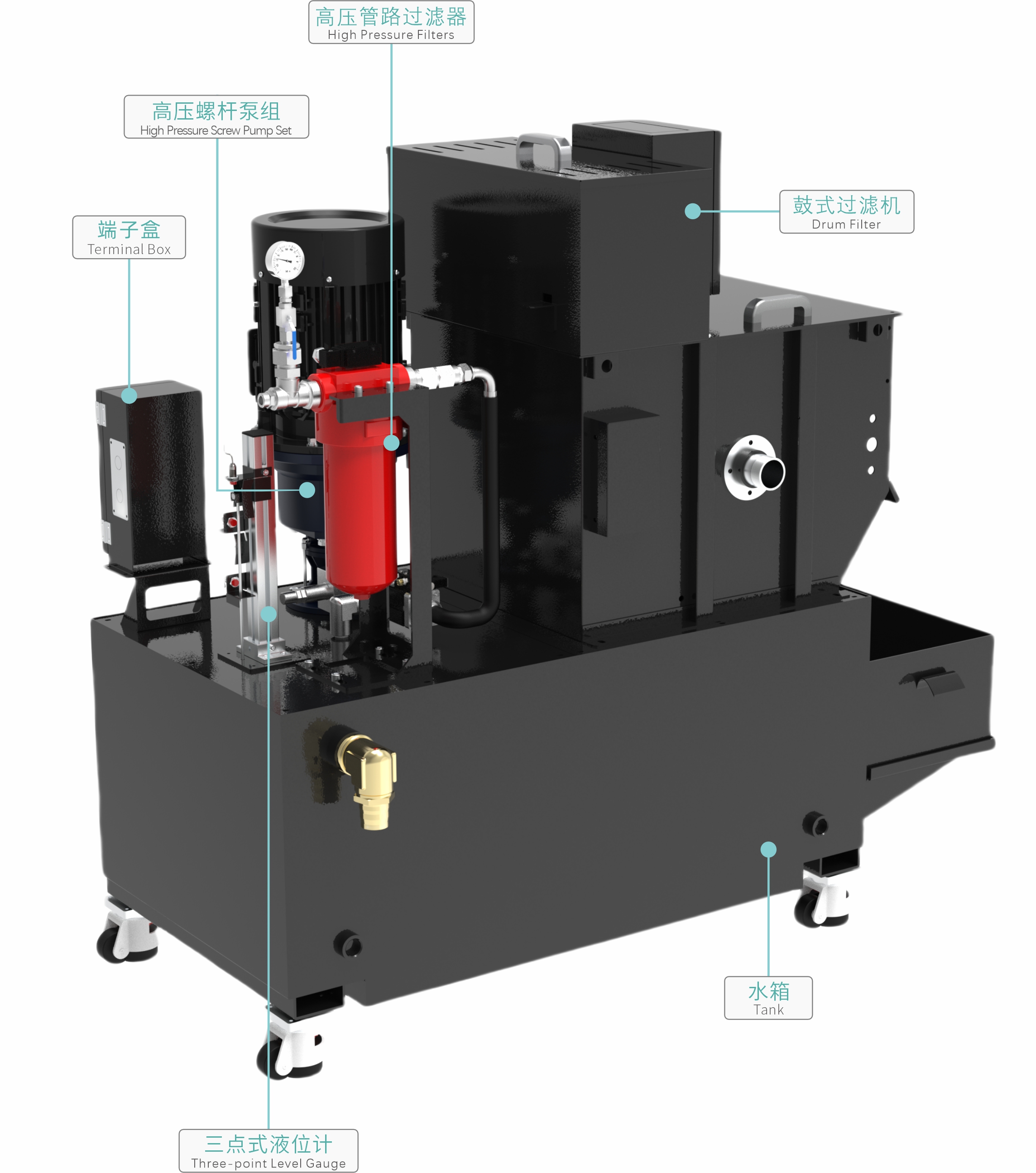

鼓式過濾系統是由液箱、集污箱、濾紙、減速機、傳動機構、發訊機構、供液泵等幾部分組成。工作時利用過濾紙將冷卻液中細微的切屑及雜質進行分離。迷宮式設計,設置多道過濾網,方便清理,高壓螺桿泵,排屑一體式的核心部件,具有高壓力,大流量,高性能的優點;另外還有三過濾器,微米過濾,能有效的保護機床主軸和旋轉接頭。
Hydrostatic Drum Filter System is composed of a liquid tank, a dirt collecting tank, filter paper, a reducer, a transmission mechanism, a signal transmission mechanism, a liquid supply pump, etc. During operation, the filter paper is used to separate the fine chips and impurities in the coolant. The labyrinth design is equipped with multiple filter screens for easy cleaning. The high-pressure screw pump and the integrated chip removal core components have the advantages of high pressure, large flow, and high performance. In addition, there are three-stage filters and micron-level filtration, which can effectively protect the machine tool spindle and rotary joint.
二、典型應用場景--Typical application scenario
適用于重切屑工況,渦旋分離器加多掛袋式過濾器配置,加立式安裝泵組撬裝結構。兼容立式/臥式加工中心、車銑復合等產線的粗精加工,適應加工鋼件、鋁件、不銹鋼件等。
Suitable for heavy chipping conditions, vortex separator with bag filter, vertical pump assembly skid-mounted structure. Compatible with vertical/horizontal machining centers, turning and milling production lines, and suitable for machining steel, aluminum, stainless steel, etc.
三、主要技術參數與選型--Main technical parameter and selection
水箱容積 Tank Volume | 400L | 調壓閥類型 Pressure Regulator Type | 二位三通閥、板式調壓閥、比例閥 Two-position three-way valve、Plate Pressure Regulator, Proportional Valve |
整體體積 Bulk Volume | 1580x700x1360mm | 過濾組合 Filter Combination | 渦旋分離器+掛式布袋過濾+高壓管路過濾 Vortex Separation + Hanging Bag Filtration +High Pressure Line Filtration |
螺桿泵安裝方式 Screw Pump Installation Method | 立式 Vertical Type | 過濾精度 Filtration Accuracy | 15μm-60μm |
提升泵參數 Lift Pump Parameter | 可選 Selectable | 控制方式 Control Mode | 集成PLC、AKP模塊、端子盒 Integrated PLC、 AKP Module、 Terminal Box |
型號 Model Number | 泵 Pump | 壓力bar(Mpa) Pressure bar(Mpa) | 流量Q(L/min) Flow Rate Q(L/min) | 軸功率P(KW) Shaft Power P(kw) | 電機功率P(KW) Motor Power P(kw) |
| A3MT-025/038-E | 高壓螺桿泵 High Pressure Screw Pump | 70(7) | 20.0 | 4.3 | 5.5 |
| A3MT-025/050-E | 高壓螺桿泵 High Pressure Screw Pump | 70(7) | 30.0 | 5.6 | 7.5 |
| A3MT-025/060-E | 高壓螺桿泵 High Pressure Screw Pump | 70(7) | 35.0 | 6.9 | 11.0 |
四、產品亮點--Product High Lights
